Adjustable Steel Radio Shuttle Pallet Runner Cold Storage Racking System

Availability:
Quantity:

Adjustable Steel Radio Shuttle Pallet Runner Cold Storage System



Adjustable Steel Radio Shuttle Pallet Runner Cold Storage System is a racking system with high density storage including racking and electrically powered pallet runners, which works with forklifts. This high efficient storage solution provides a new option to maximum use of warehouse volume.

Adjustable Steel Radio Shuttle Pallet Runner Cold Storage System is a new kind of storage management systems, with high density storage racking and electrically powder pallet runners and working with forklifts. It makes a new concept for loading pallets and storage space, utilizes the warehouse space more adequately and flexibility comparing with other traditional storage styles.


Specifications

Pallet Size W1200*D1000mm
Pallet Outline Grid-shaped, Tin-shaped
Deflection of Pallet Max 20mm
Modle of Running Inside the two rails
Running without Loading 1.1m/s
Running with Max Loading 0.9m/s, 0.7m/s, 0.5m/s, 0.5m/s Lift Distance: 22mm
Lift Distance 22mm
Single Lift time 1.1s / 1.3s / 1.5s / 1.5s
Total Weight of Equipment 222kg/228kg/240kg/240kg
Battery Packs Capacity BYD 2 set x 24V 30AH
Battery Voltage DC 24V
Remote Control Type Radio-transmitter
Running Noise < 70DB


Our Service


CAD drawing and 3D drawing as your requirements




Kindly provide information for quick and exact quotation,
1.  Drawing (If available)
2.  Size (Width, Depth, Height)
3.  Entry type
4.  Loading capacity
5.  Quantity
6.  (RAL) color you want


Adjustable Steel Radio Shuttle Pallet Runner Cold Storage System.The shuttle movements are sent via the radio remote controller allowing the forklift truck and driver to be released for other tasks while the shuttle operates. The shuttle is easily moved between lanes by a standard fork lift truck.


Products show

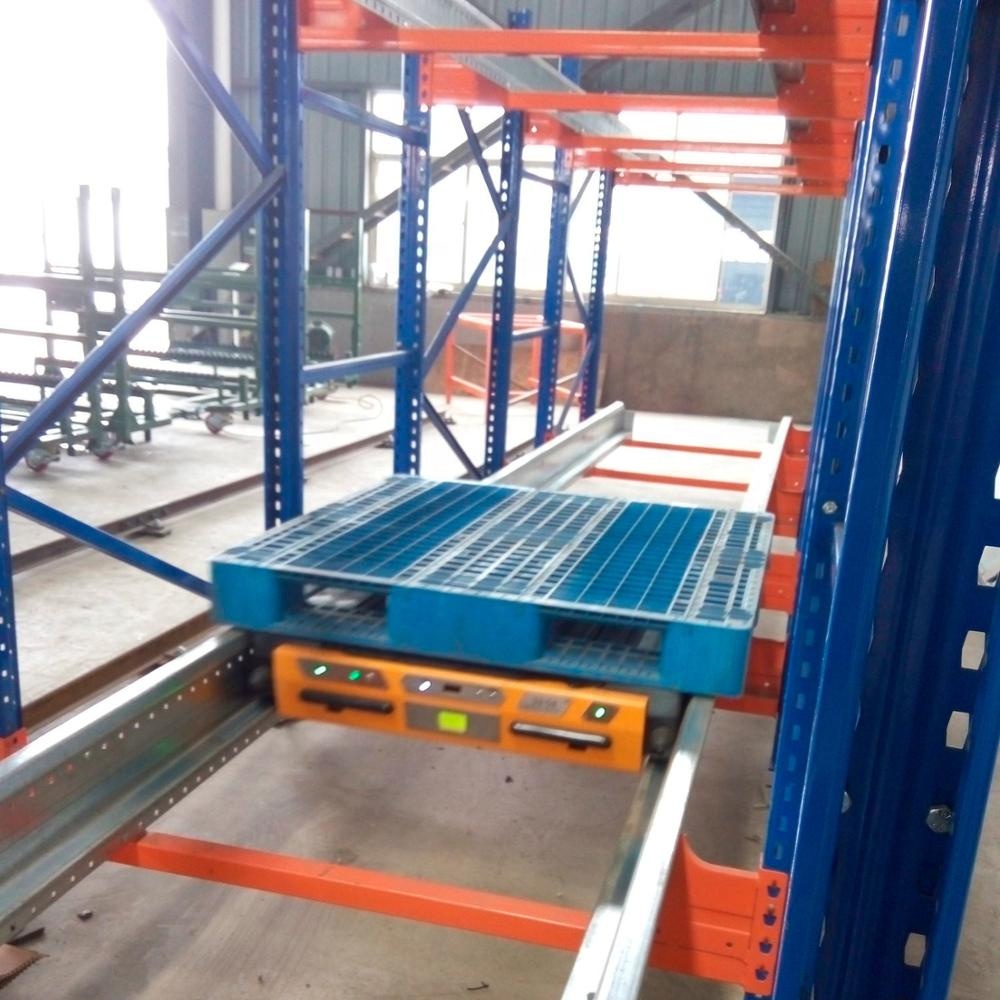

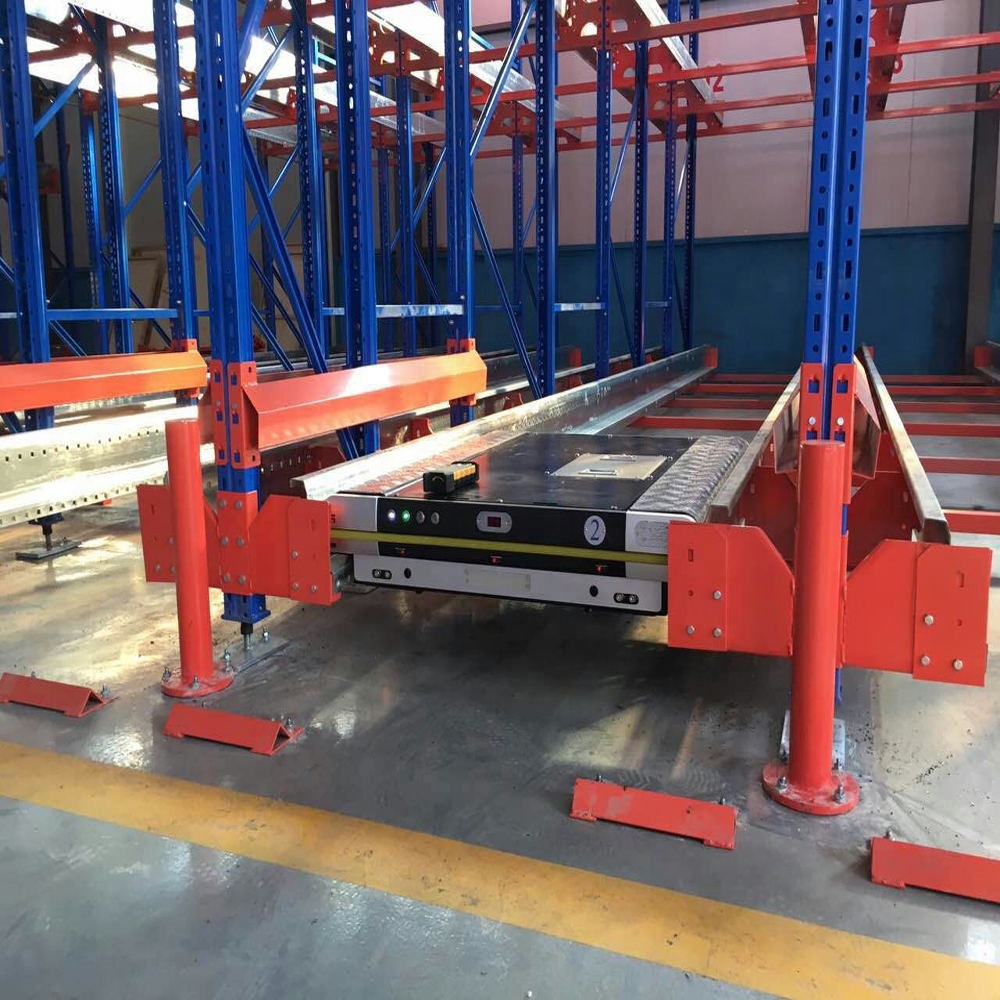

Adjustable Steel Radio Shuttle Pallet Runner Cold Storage System

Radio shuttle racking includes 3 required combined parts for working:

Shuttle Racks, Radio Shuttle Car (Pallet Runner), Forklift



FIFO or FILO Radio Shuttle Racking




FIFO or FILO Radio Shuttle Racking



FIFO or FILO Radio Shuttle Racking




Factory Production Process


More products

Factory show

Office show

FAQ


Q: What is your trading terms?
A:
1. ) Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. Or L/C.
2. ) Lead time: Normally in 30 days after deposit received.
3. ) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. ) Shipping port: Shanghai China.
5. ) Discounts: We offer discount for large quantity.

Q: How I can delivery my goods?
A:

1. ) Sea Freight: We will update sea freight once we know your sea port where goods will be delivered.
2. ) Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

Q: What is your service?
A:
1. ) Your inquiry related to our products or prices will be replied in 24 hours.
2. ) Well-trained and experienced staffs to answer all your enquires in fluent English.
3. ) OEM&ODM, any your customized racks we can help you to design product.
4. ) We have very experienced professional engineers to make best solutions.

Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping

Q: What is your advantage?
A:
1. ) Warranty: Two years warranty, the broken parts will be replaced and sent to you.
2. ) Factory price: Factory direct sale competitive price.
