Heavy Duty FIFO Automated Radio Shuttle Satellite Pallet Racking

Availability:
Quantity:
Product Description

Heavy Duty FIFO Automated Radio Shuttle Satellite Pallet Racking

Heavy Duty FIFO Automated Radio Shuttle Satellite Pallet Racking is a racking system with high density storage including racking and electrically powered pallet runners, which works with forklifts. This high efficient storage solution provides a new option to maximum use of warehouse volume.


Radio shuttle car specification.

Lift Distance: 22mm
Total Weight of Loading: Max.2000kg
Running without Load: 1.1m/s,with max load:0.5m/s
Single Lift time: 1.1s / 1.3s / 1.5s
Total Weight of Equipment: 222-240kg
Battery Packs Capacity: BYD 2 set x 24V 30AH
Running Noise: < 70DB
Remote Control Type: Radio-transmitter

Part Name
Brand
Country
Driver motor for running
Lenze GKR03-2P HAR 063C21 370W
Germany
Driver motor for lift
Lenze GFL04-2F HCR 063C21 370W
Germany
Battery packs capacity
AMD 24V 60AH
China
Programmable Logic Controller
Siemens PLC
Germany
SickSensor
Sensor
Germany

Detailed Images

Heavy Duty FIFO Automated Radio Shuttle Satellite Pallet Racking

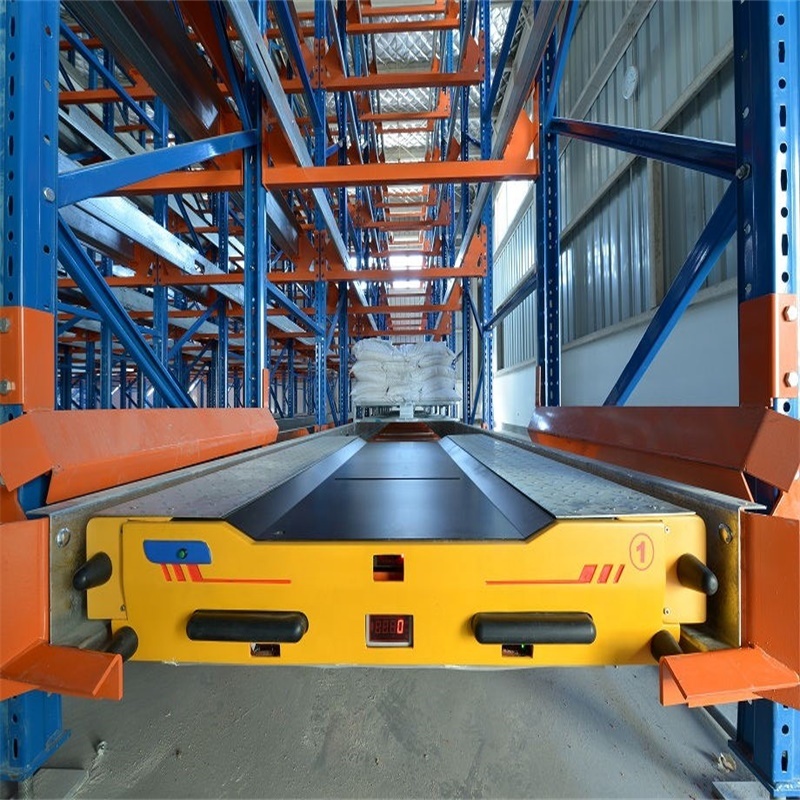

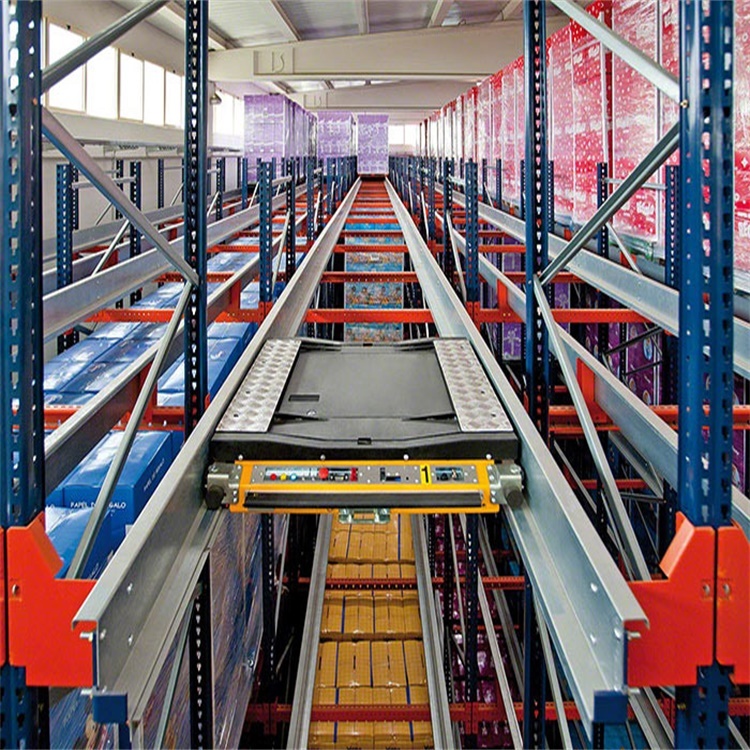

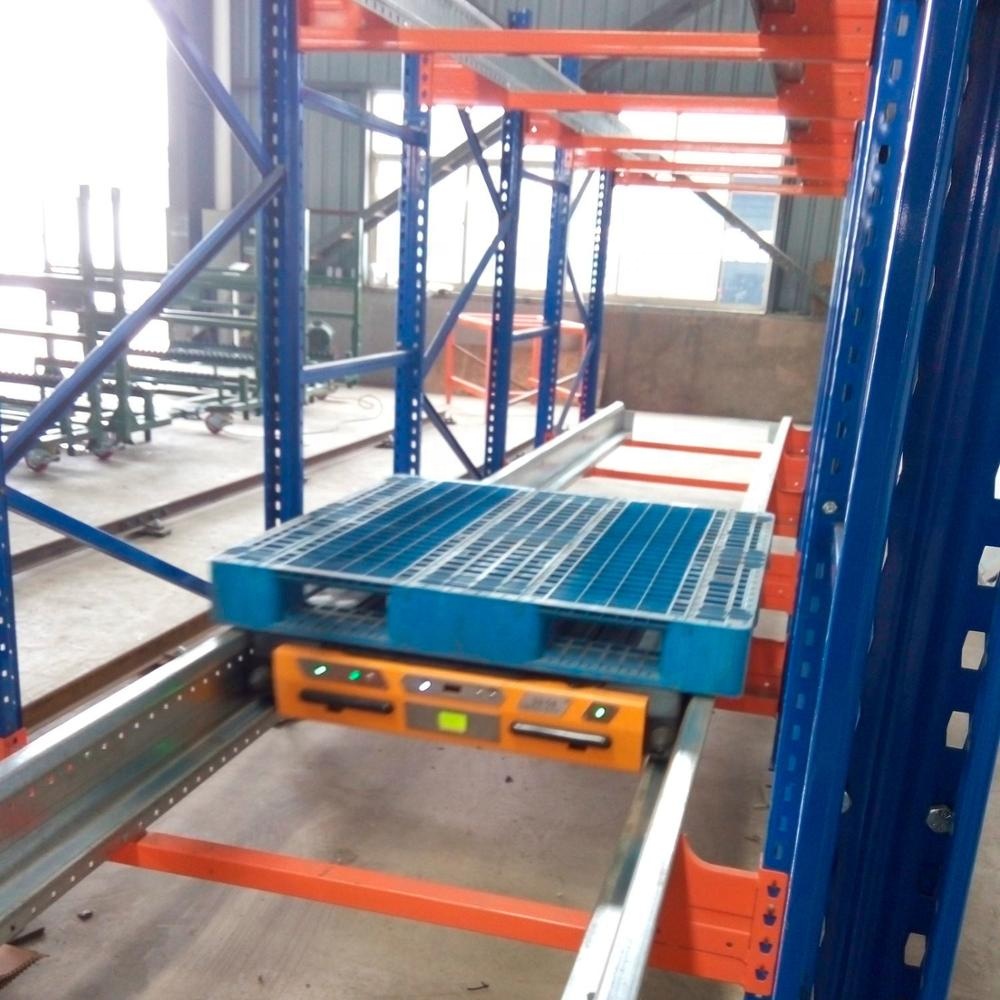

The radio racking system inckuding the rack,the shuttle cart,the guide rail.





Our Service


CAD drawing and 3D drawing as your requirements

Kindly provide information for quick and exact quotation,
1. Drawing (If available)
2. Size (Width, Depth, Height)
3. Entry type
4. Loading capacity
5. Quantity
6. (RAL) color you want

Related Products




Office & Producing

Factory History

Start 1995,
The professional manufacture of all types of racking system-Jiangsu Union was founded since 1995.

Our Team

The company team consists of talents from various fields,such as the PM, drawing designer,technical engineer,international sales,QC and so on.

Exhibition

Every year we need to take part in the professional exhibition more than 2 times.Suce as the Cemat and any related industrial exhibition.



Certifications




Packing & Delivery

Step 1

Packed the beams and uprights for the radio shuttle rack together with wrapping film.

Step 2

Packed the guide rail for the radio shuttle rack together with wrapping film.

Step 3

Packed the single shuttle car in the non-fumigation wooden box.
