Heavy Duty FIFO Radio Shuttle Racking System
Heavy duty FIFO radio shuttle racking system is a racking system with high density storage including racking and electrically powered pallet runners, which works with forklifts. This high efficient storage solution provides a new option to maximum use of warehouse volume.
Heavy duty FIFO radio shuttle racking system is a new kind of storage management systems, with high density storage racking and electrically powder pallet runners and working with forklifts. It makes a new concept for loading pallets and storage space, utilizes the warehouse space more adequately and flexibility comparing with other traditional storage styles.
Specifications
| Pallet Size | W1200*D1000mm |
| Pallet Outline | Grid-shaped, Tin-shaped |
| Deflection of Pallet | Max 20mm |
| Modle of Running | Inside the two rails |
| Running without Loading | 1.1m/s |
| Running with Max Loading | 0.9m/s, 0.7m/s, 0.5m/s, 0.5m/s Lift Distance: 22mm |
| Lift Distance | 22mm |
| Single Lift time | 1.1s / 1.3s / 1.5s / 1.5s |
| Total Weight of Equipment | 222kg/228kg/240kg/240kg |
| Battery Packs Capacity | BYD 2 set x 24V 30AH |
| Battery Voltage | DC 24V |
| Remote Control Type | Radio-transmitter |
| Running Noise | < 70DB |
Our Service
CAD drawing and 3D drawing as your requirements
Kindly provide information for quick and exact quotation,
1. Drawing (If available)
2. Size (Width, Depth, Height)
3. Entry type
4. Loading capacity
5. Quantity
6. (RAL) color you want
Heavy Duty FIFO Radio Shuttle Racking System. The shuttle movements are sent via the radio remote controller allowing the forklift truck and driver to be released for other tasks while the shuttle operates. The shuttle is easily moved between lanes by a standard fork lift truck.
Products show

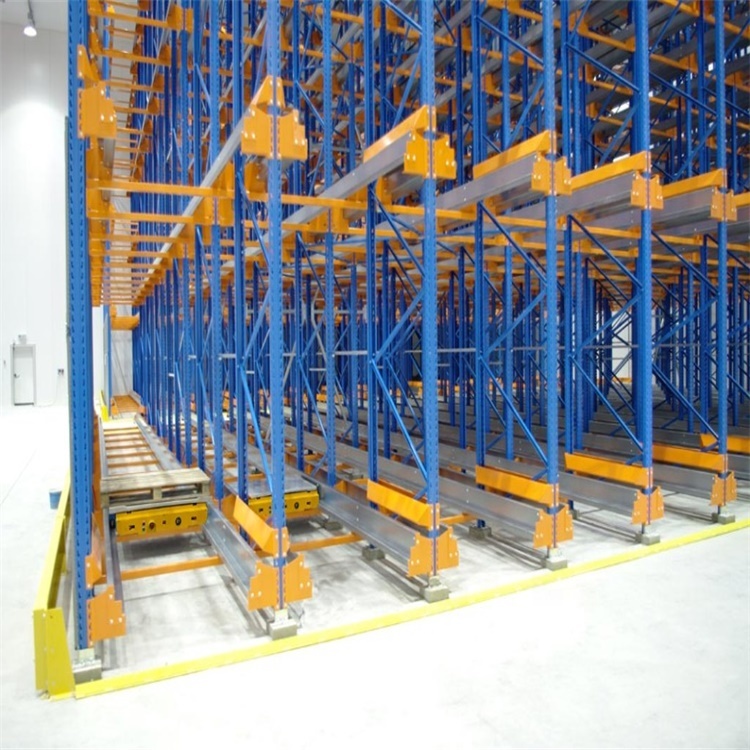

Heavy Duty FIFO Radio Shuttle Racking System
Radio shuttle racking includes 3 required combined parts for working:
Shuttle Racks, Radio Shuttle Car (Pallet Runner), Forklift
FIFO or FILO Radio Shuttle Racking
FIFO or FILO Radio Shuttle Racking
FIFO or FILO Radio Shuttle Racking
Factory Production Process
More products
Factory show
Office show
FAQ
Q: What is your trading terms?
A:
1. ) Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. Or L/C.
2. ) Lead time: Normally in 30 days after deposit received.
3. ) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. ) Shipping port: Shanghai China.
5. ) Discounts: We offer discount for large quantity.
Q: How I can delivery my goods?
A:
1. ) Sea Freight: We will update sea freight once we know your sea port where goods will be delivered.
2. ) Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: What is your service?
A:
1. ) Your inquiry related to our products or prices will be replied in 24 hours.
2. ) Well-trained and experienced staffs to answer all your enquires in fluent English.
3. ) OEM&ODM, any your customized racks we can help you to design product.
4. ) We have very experienced professional engineers to make best solutions.
Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping
Q: What is your advantage?
A:
1. ) Warranty: Two years warranty, the broken parts will be replaced and sent to you.
2. ) Factory price: Factory direct sale competitive price.
