High Density Warehouse Pallet Radio Shuttle Racking System

Availability:
Quantity:
Product Description

Automated Warehouse Pallet Radio Shuttle Racking System

Automated Warehouse Pallet Radio Shuttle Racking System is a racking system with high density storage including racking and electrically powered pallet runners, which works with forklifts. This high efficient storage solution provides a new option to maximum use of warehouse volume.


Radio shuttle car specification.

Lift Distance: 22mm
Total Weight of Loading: Max.2000kg
Running without Load: 1.1m/s,with max load:0.5m/s
Single Lift time: 1.1s / 1.3s / 1.5s
Total Weight of Equipment: 222-240kg
Battery Packs Capacity: BYD 2 set x 24V 30AH
Running Noise: < 70DB
Remote Control Type: Radio-transmitter

Part Name
Brand
Country
Driver motor for running
Lenze GKR03-2P HAR 063C21 370W
Germany
Driver motor for lift
Lenze GFL04-2F HCR 063C21 370W
Germany
Battery packs capacity
AMD 24V 60AH
China
Programmable Logic Controller
Siemens PLC
Germany
SickSensor
Sensor
Germany


The rack is a new kind of storage management systems, with high density storage racking and electrically powder pallet runners and working with forklifts. It makes a new concept for loading pallets and storage space, utilizes the warehouse space more adequately and flexibility comparing with other traditional storage styles..

Detailed Images

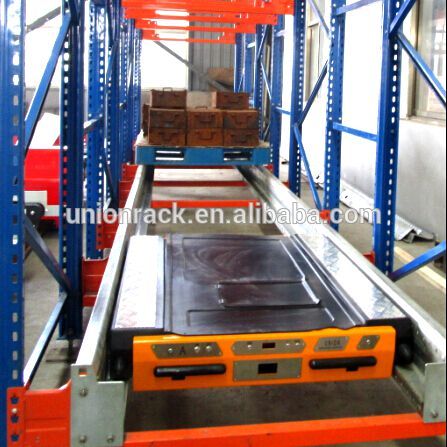

Radio shuttle racking system from Union Logistics

The radio racking system inckuding the rack,the shuttle cart,the guide rail.


Remote control

                    Charging cabinet

                   Charging Battery

Our Service


CAD drawing and 3D drawing as your requirements

Kindly provide information for quick and exact quotation,
1. Drawing (If available)
2. Size (Width, Depth, Height)
3. Entry type
4. Loading capacity
5. Quantity
6. (RAL) color you want

Office & Producing

Factory History

Start 1995,
The professional manufacture of all types of racking system-Jiangsu Union was founded since 1995.

Our Team

The company team consists of talents from various fields,such as the PM, drawing designer,technical engineer,international sales,QC and so on.

Exhibition

Every year we need to take part in the professional exhibition more than 2 times.Suce as the Cemat and any related industrial exhibition.



Certifications




Packing & Delivery

After installation and commissioning

The battery and charging cabinet

Per shuttle car per wooden box.
