Warehouse Automatic Storage ASRS Racking System

Product Description

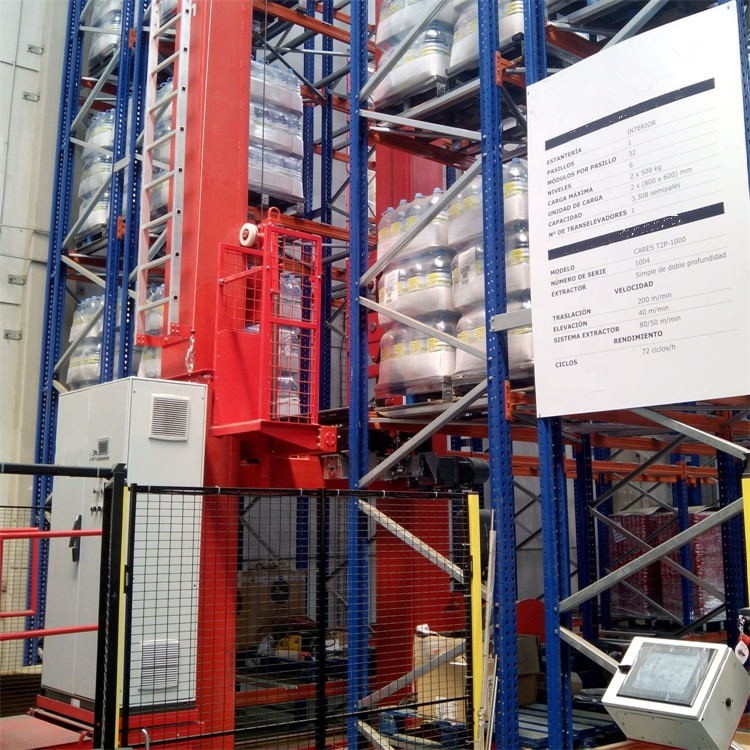

Warehouse Automatic Storage ASRS Racking System
Made by Jiangsu Union Logistics System Engineering Co., Ltd

In ASRS system, heavy-duty rackings are placed on both sides with a small aisle space between these racks.
The rail-mounted storage and retrieval mechanism is fixed between the aisle spaces. ASRS Automatic Storage and Retrieval Pallet Racking System.
The rails cover the entire length of the racks. The system is provided with PLC Controller to control the overall operation of the system.

Product Name
Warehouse Automatic Storage ASRS Racking System
Q235 Steel
Double deep racking system; Single deep racking system; Shuttle storage racking system
Load Capacity
light duty: 50kg-500kg; heavy duty: 1000kg-2000kg
Logistics Equipment
Stacker cranes, Conveyors, Radio Shuttles
According to your request
Manage System
Motor Brand
Products Show
Our Service

AutoCAD drawing of Warehouse ASRS Racking System


Side View

Front View

Pallet Positions

Please inform us below detailed information for quick quotation,

1)The warehouse dimension (length*width*height) metion the handling area size

2)The loading pallet dimension and loading weight

3)How many pallet positions do you need

4)Inform us the input and output way

5)what's the throughput do you need per day

6)what's the working time

7)color you need

load platform



Our Company





Packing & Delivery

Packing Details for Warehouse ASRS Racking System   : Wrapt in plastic film or in bulk.

Delivery Details  for Warehouse ASRS Racking System: According to your order

1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
Our Certifications

Our products has passed ISO9001, SGS certificates

Related Products

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment
